- Size: 1/2 to 12" NB
- Pressure Ratings: Up to 150 PSI
- Standard: ASTM B912, SEMI F17, SEMI F19, ASME BPE
- Finish: EP, BA, MP, AP
- Spec.: ISO, DIN, IDF, SMS, BSP, NPT
ASME BPE Certified 1.5 Tri Clover Clamps Manufacturer in India in Various Grades With Size ½ to 12”
TC Clamp Sizes
| Pipe OD in A |
Pipe ID C |
Flange OD B |
|---|---|---|
| 1.5 | 1.37 | 1.98 |
| 1 | .87 | 1.98 |
| 2 | 1.87 | 2.52 |
| 3 | 2.87 | 3.58 |
| 2.5 | 2.37 | 3.05 |
| 4 | 3.83 | 4.68 |
| 8 | 7.78 | 8.57 |
| 6 | 5.78 | 6.57 |
| 12 | 11.81 | 12.57 |
| 10 | 9.69 | 10.57 |
1.5 TC Clamp
Stainless Steel TC Clamp
Tri Clover Clamps
TC Clamp Specification
Sizes
TC Clamp Sizes
- 1/2 to 12" NB
- Pressure Ratings: Up to 150 PSI
Finish
1.5 TC Clamp Finish
- Electro Polished
- Mirror
Industry Standards
High Pressure Tri Clover Clamps Industry Standards
- ASTM B912
- SEMI F17, SEMI F19
- ASME BPE
Specification
Tri Clover Clamps Specification
- DIN, ISO
- ASME BPE
- 3A Standards
Application
TC Pipe Clamp Application
- Dairy
- Pharmaceutical
- Semiconductor
- Cosmetic Industries.
- Food Processing
Value Added Services
TC Clamp Ferrule Value Added Services
- Threading
- Polishing
- Custom Fabrication
Benefits
TC Clamp Benefits
- High strength
- Resistance to corrosion
- Durability
- Varied sizes
End Connection
Stainless Tri Clamp End Connection
- Tri-Clamp
- Welded
- Threaded
Packaging
SS Tri Clover Clamps Packaging
- Square Pack
- Scored Cardboard
- Tri-Wall Box
- Paper/Poly Sleeve
Origin
Stainless TC Clamp Ferrule Origin
- Japanese
- Korean
- European, Indian
- American
Testing
High Pressure Tri Clover Clamps Testing
- Roughness Test
- Hardness Test
- Ultrasonic Test
Temperature
1.5 TC Clamp Temperature Range
- -50°C to +250°C
Process
Stainless Steel TC Clamp Process
- Mandrel
- Hot forming
Documentation
SS TC Clamp Fitting Documentation
- 100% Radiography Test Report
- Third Party Inspection Report
Dimensions Of Tri Clover Ferrule
Leading TC Clamp Supplier in India Provides Custom Dimension On Demand
| Size (mm) | B (mm) | A (mm) | D (mm) | C (mm) |
|---|---|---|---|---|
| 19.1 | 20.0 | 25.1 | 21 | 15.9 |
| 12.7 | 20.0 | 25.1 | 21 | 9.5 |
| 25.4 | 43.5 | 50.5 | 21 | 22.2 |
| 38.1 | 43.5 | 50.5 | 21 | 34.9 |
| 31.8 | 43.5 | 50.5 | 21 | 28.6 |
| 63.5 | 70.5 | 77.5 | 21 | 60.3 |
| 50.8 | 56.5 | 64.0 | 21 | 47.6 |
| 101.6 | 110.0 | 119.0 | 21 | 98.4 |
| 76.2 | 83.5 | 91.0 | 21 | 73 |
| 203.2 | 207.2 | 217.5 | 29 | 199.2 |
| 152.4 | 157.0 | 166.1 | 27 | 148.4 |
| 304.8 | 308.8 | 319.5 | 29 | 300.8 |
| 254 | - | 268.5 | 29 | 250 |
TC Clamp Full Form
| TC Clamp | Tri-Clover Clamp |
|---|
Supplier Of Stainless Steel Tri Clover Clamps in Mumbai Up to 150 PSI Pressure Rating
Stainless Tri Clover Clamp Pressure Ratings
| Pressure Ratings (PSI) | |||||
|---|---|---|---|---|---|
| Single Hinge (13MHM) | High Pressure (13MHP) | ||||
| Size | 250F | 70F | 250F | 70F | Max Torque |
| 1.5 in. | 250 | 500 | 1200 | 1500 | 130 In LBf |
| 3/4 in. | 1200 | 1500 | 1200 | 1500 | 130 In LBf |
| 2.5 in. | 200 | 400 | 800 | 1000 | 130 In LBf |
| 2 in. | 250 | 450 | 800 | 1000 | 130 In LBf |
| 4 in. | 125 | 200 | 600 | 800 | 200 In LBf |
| 3 in. | 150 | 350 | 800 | 1000 | 130 In LBf |
| 6 in. | 75 | 150 | 200 | 300 | 200 In LBf |
| 10 in. | 30 | 40 | 125 | 200 | 200 In LBf |
| 8 in. | 50 | 100 | 150 | 250 | 200 In LBf |
| 12 in. | 25 | 30 | 100 | 150 | 200 In LBf |
Offer High Pressure TC Pipe Clamp With Threaded and Welded Connection At Best Price
TC Clamp Price
Purchase TC Clamp in South Africa, Myanmar, West Asia, Europe, Gulf Countries, West Africa, etc. At Lowest Possible Price
Fractional Tri-Clamps with Wing Nut Sizes
| Size OD (in) | A (in) |
|---|---|
| ¾ or ½ | 1.13 |
Buy TC Clamp Ferrule With Different Surface Finish like Mirror Finish, Electro-Polished As Per Standards
SS Tri Pipe Clamp Surface Finish
Well Known TC Clamp Supplier in India Offers With Different Surface Finish
- Mirror Finish
- Electro-Polished
- Annealing
- Mechanical Polished
TC Clamp Size Chart
Reputable TC Clamp Manufacturer in India Offers Wide range Of Sizes
| OD Outer Diameter (Inches) | Wall Thickness (Inches/Gauge) | ID Inner Diameter (Inches) | A Ferrule Face (Inches) |
|---|---|---|---|
| ½ | 0.065 / 16 ga. | 0.37 | 0.984 |
| ¾ | 0.065 / 16 ga. | 0.62 | 0.984 |
| 1 | 0.065 / 16 ga. | 0.87 | 1.984 |
| 1½ | 0.065 / 16 ga. | 1.37 | 1.984 |
| 2 | 0.065 / 16 ga. | 1.87 | 2.516 |
| 2½ | 0.065 / 16 ga. | 2.37 | 3.047 |
| 3 | 0.065 / 16 ga. | 2.87 | 3.579 |
| 4 | 0.083 / 14 ga. | 3.87 | 4.682 |
TC Clamp Types
Reliable TC Clamp Stockist in India Offers Various Types
High Pressure Tri Clover Clamps
TC Clamp Ferrule
TC Pipe Clamp
Single Pin Heavy Duty Clamp with Hex Nut
Bolted Clamp
Q-Line Clamp
Dairy Clamp
T-Bolt Sanitary Clamp
Three Segment Sanitary Clamp

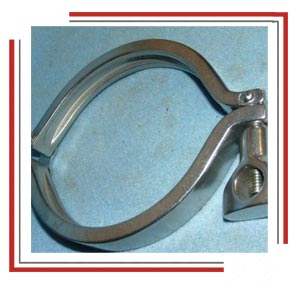

Double Pin Heavy Duty Clamp
Toggle Sanitary Clamp
Single Pin Squeeze Clamp
High Pressure Tri-Clover Clamp Sizes
| PRODUCT NAME | SIZE |
|---|---|
| 2" Tri-Clamp High Pressure | 2" |
| 1.5" Tri-Clamp High Pressure | 1.5" |
| 3" Tri-Clamp High Pressure | 3" |
Find SS TC Clamp Fitting Ready Stock Suitable to Work At Temperature -50° to +250°C With Hydrostatic and NDT Testing
Working Temperature Range For Stainless Steel TC Clamp Ferrule
| Working Temperature Range | -50° to +250°C |
|---|
Tri Clover Clamp Testing
- Hydrostatic Testing
- PMI Test
- Flattening Test
- Flaring Test
- IGC Test
Sizes Of 3-Segment Heavy Duty Tri-Clamps with Wing Nut
| Size OD (in) | A (in) |
|---|---|
| 1 or 1½ | 2.13 |
| 2 | 2.66 |
| 2½ | 3.19 |
| 3 | 3.72 |
| 4 | 4.83 |
TC Clamp Dimensions in mm
| Tube OD | Size | Flange OD |
|---|---|---|
| 3/4 | 3/4 | 0.984 |
| 1/2 | 3/4 | 0.984 |
| 1.5 | 1.5 | 1.984 |
| 1 | 1.5 | 1.984 |
| 2.5 | 2.5 | 3.047 |
| 2 | 2 | 2.516 |
| 4 | 4 | 4.682 |
| 3 | 3 | 3.579 |
Components Of Stainless Tri-Clamp Fittings
Light Duty Tri-Clamps With T-Bolt Sizes
| Size OD (in) | A (in) |
|---|---|
| 2 | 2.61 |
| 1 or 1½ | 2.08 |
| 3 | 3.67 |
| 2½ | 3.14 |
| 6 | 6.69 |
| 10 | 10.69 |
| 4 | 4.78 |
| 8 | 8.69 |
| 12 | 12.69 |
Tri Clover Clamps Dimensions
Innovative TC Clamp Manufacturer in India Providing Best Quality In Various dimensions
| ØD | ØD2 | ØD1 | H | H1 | R | |
|---|---|---|---|---|---|---|
| 3/4" | Ø44 | Ø64.0 | Ø56.5 | 1.9 | 4.8 | 1.15 |
| 1/2" | Ø44 | Ø64.0 | Ø56.5 | 1.9 | 4.8 | 1.15 |
| 1 1/2" | Ø57 | Ø77.5 | Ø70.5 | 1.9 | 4.8 | 1.15 |
| 1" | Ø44 | Ø64.0 | Ø56.5 | 1.9 | 4.8 | 1.15 |
| 2 1/2" | Ø87 | Ø106 | Ø97 | 1.9 | 4.8 | 1.15 |
| 2" | Ø73 | Ø91 | Ø83.5 | 1.9 | 4.8 | 1.15 |
| 4" | Ø123 | Ø145 | Ø133 | 1.9 | 4.8 | 1.15 |
| 3" | Ø102 | Ø119 | Ø110 | 1.9 | 4.8 | 1.15 |
SS TC Clamp HSN Code
| Product | HSN Code |
|---|---|
| TC Clamp | 73071900 |
Features Of High Pressure Tri Clover Clamps
- Corrosion Resistance
- Leak-Proof Design
- Hygienic Properties
- Customizable Sizes
- Durability
Why Choose Rajendra Steel Centre For Stainless Steel TC Clamp ?
- High-Quality Products
- Timely Delivery
- Custom Solutions
- Global Presence
- Competitive Pricing
SS Tri Clamp Gasket Chart
| Tri-Clamp Gasket Size | ID of Gasket | OD of Gasket |
|---|---|---|
| 1/2″ | 0.370 | 0.992 |
| 3/4″ | 0.620 | 0.992 |
| 1″ | 0.870 | 1.984 |
| 1 1/2″ | 1.370 | 1.984 |
| 2 1/2″ | 2.370 | 3.047 |
| 2″ | 1.870 | 2.516 |
| 3″ | 2.870 | 3.579 |
| 6″ | 5.782 | 6.562 |
| 4″ | 3.834 | 4.682 |
| 8″ | 7.782 | 8.602 |
| 12″ | 11.760 | 12.570 |
| 10″ | 9.782 | 10.570 |
Dimensions Of 13mhp High Pressure clamps
| Type | 304 |
|---|---|
| Size | 6" |
| Item | Clamp |
| Weight | 4.19 lbs |
| Material | Stainless Steel |
| Style | High pressure |
Applications Of TC Pipe Clamp
Get TC Clamp in MENA Countries For Food Processing, Sanitary, Oil and Gas, Petro Chemical, LNG Consultants, Dairy, Steel Fabricators, Refineries, Ship Reparing Yard etc.
Tri-clamp Connections Service Ratings
| Size Tube OD | ½ & ¾ inch (psi) | 1 & 1½ inch (psi) | 2 inch (psi) | 2½ inch (psi) | 3 inch (psi) | 4 inch (psi) | 6 inch (psi) |
|---|---|---|---|---|---|---|---|
| 13MHHM | (Wing nut tightened to 25 inch-pounds of torque) | ||||||
| at 70°F at 250°F |
- - |
500 300 |
450 300 |
400 200 |
350 195 |
300 150 |
150 75 |
| 13MHLA | (to max screw tightened | ||||||
| at 70°F at 250°F |
- - |
150 125 |
150 125 |
150 125 |
150 125 |
100 75 |
- - |
| A13MO | ( to 20 inch-pounds 1 to 3 inch nuts tightened) | ||||||
| at 70°F at 250°F |
- - |
500 250 |
350 200 |
300 150 |
200 100 |
100 100 |
75 50 |
| 13MHP | (to 20 foot-pounds of torque bolts tightened ) | ||||||
| at 70°F at 250°F |
- - |
1500 1200 |
1000 800 |
1000 800 |
1000 800 |
800 600 |
300 200 |
| 13MHHS | ( to 25 inch-pounds of torque wing nut tightened) | ||||||
| at 70°F at 250°F |
2200 1200 |
600 300 |
550 275 |
450 225 |
350 175 |
300 150 |
- - |
| A13MHM | (to 25 inch-pounds of torque wing nut tightened ) | ||||||
| at 70°F at 250°F |
- - |
500 300 |
450 250 |
400 200 |
350 175 |
300 150 |
150 75 |
How to Measure Tri-Clamp Size
- Use Calliper or flexible measuring tape
- Measure ferrule’s outer diameter
High Pressure Tri Clover Clamps Gasket Material
- silicone
- EDPM
- Viton
- PTFE
Sizes Of Light Duty Adjustable Tri-Clamps
| Size OD (in) | A (in) |
|---|---|
| 3 | 3.67 |
| 2 | 2.61 |
| 1 or 1½ | 2.14 |
| 2½ | 3.14 |
| 4 | 4.78 |
Tri-Clover Clamp Double Pin Sizes
| PRODUCT | SIZE |
|---|---|
| 2" Tri-Clamp, Double Pin. | 2" |
| 1.5" Double Pin Tri-Clamp | 1.5" |
| 4" Tri-Clamp, Double Pin. | 4" |
| 3" Tri-Clamp, Double Pin. | 3" |
| 6" Tri-Clamp, Double Pin. | 6" |
Our Sales Representative is Available in the Middle East at the Location Below.
| Riyadh | Fujairah | Muscat | Sharjah |
| Al Khobar | Abu Dhabi | Ras Al Khaimah | Al Jubail |
| Dubai | Ajman | Armenia | Doha |
Chemical Composition Of Stainless TC Pipe Clamp
Nickel
8-10%
Chromium
18-20%
Manganese
2%
Silicon
1%
Phosphorous
0.045%
TC Clamp Equivalent Standards
| America | North America | Russia | Europe |
|---|---|---|---|
| ASTM | UNS | Material No. (WNr) | EN 10216-2 / EN 10217-5 |
| 304 | S30400 | 1.4301 | X5CrNi18-10 |
| 316 | S31600 | 1.4401 | X5CrNiMo17-12-2 |
| 304H | S30409 | 1.4948 | X6CrNi18-11 |
| 316Ti | S31635 | 1.4571 | X6CrNiMoTi17-12-2 |
| 304L | S30403 | 1.4306 | X2CrNi19-11 |
| 317L | S31703 | 2.4660 | FeMi35Cr20Cu4Mo2 |
| 316L | S31603 | 1.4404 | X2CrNiMo17-2-2 |
1.5 TC Clamp Mechanical Properties
| Material | Temperure | Tensile Stress | Yield Stress | Elongation %, Min |
|---|---|---|---|---|
| Min. | Ksi , Min. | Ksi , Min. | ||
| (º C) | ||||
| TP304 | 1040 | 75 | 30 | 35 |
| TP316 | 1040 | 75 | 30 | 35 |
| TP316L | 1040 | 70 | 25 | 35 |
| TP304L | 1040 | 70 | 25 | 35 |
